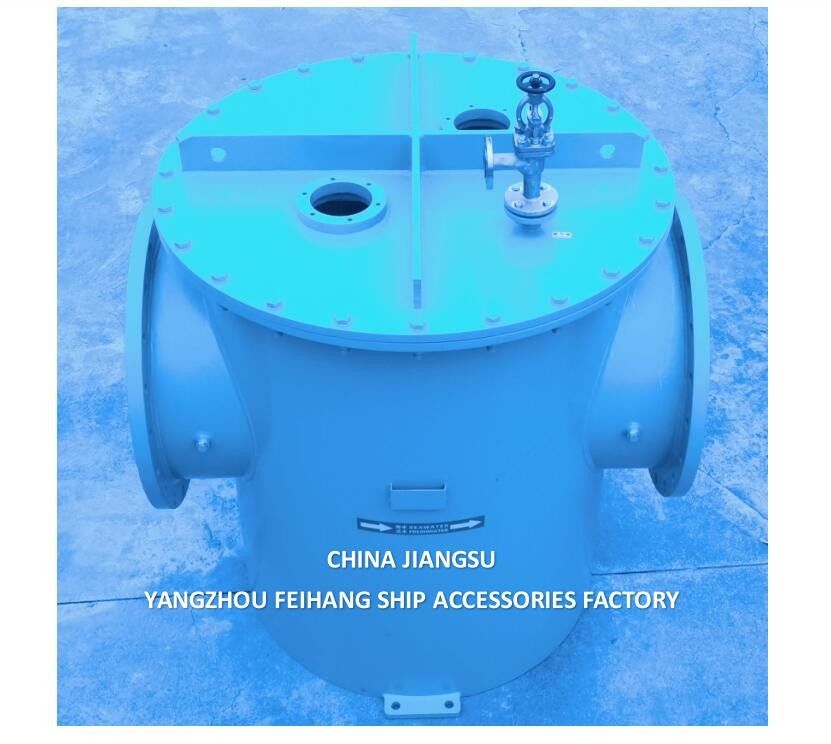

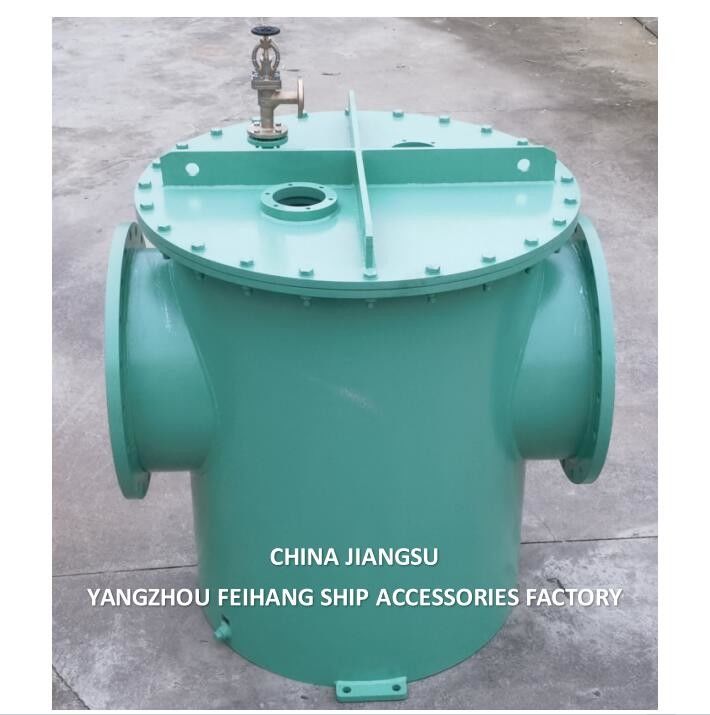

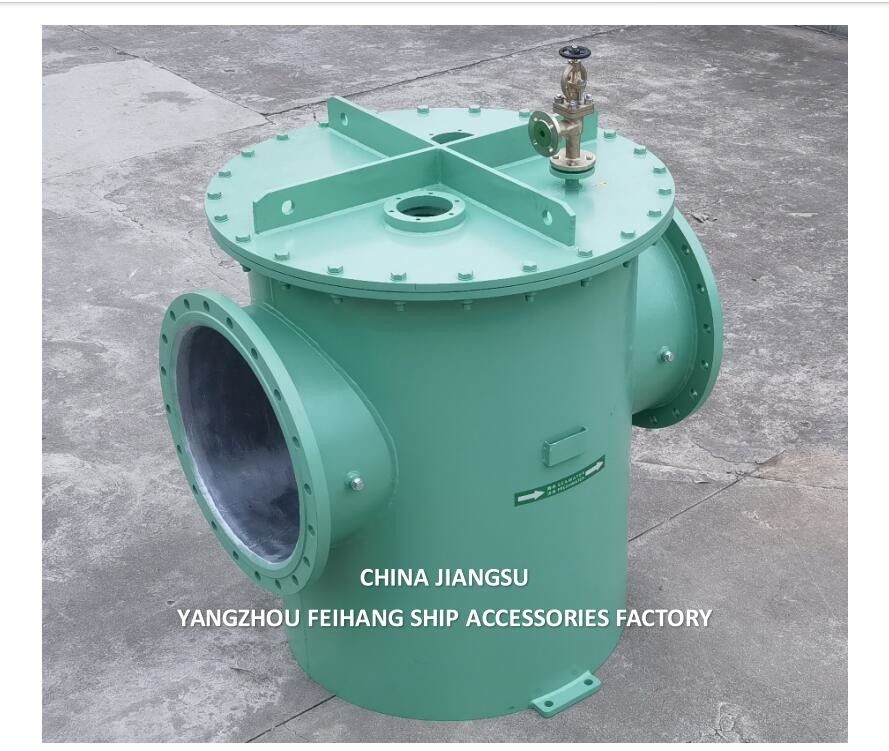

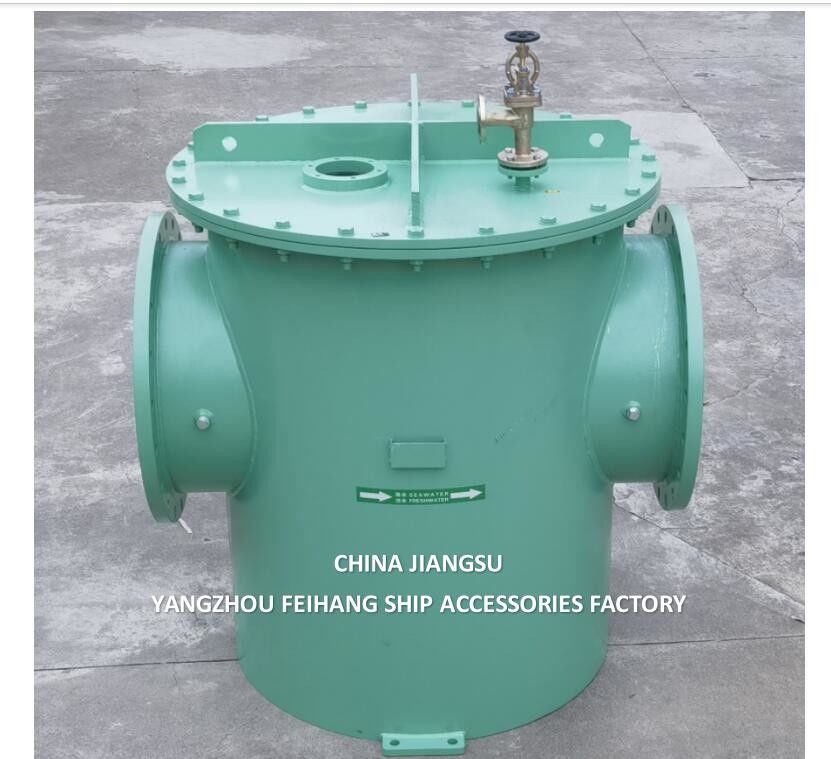

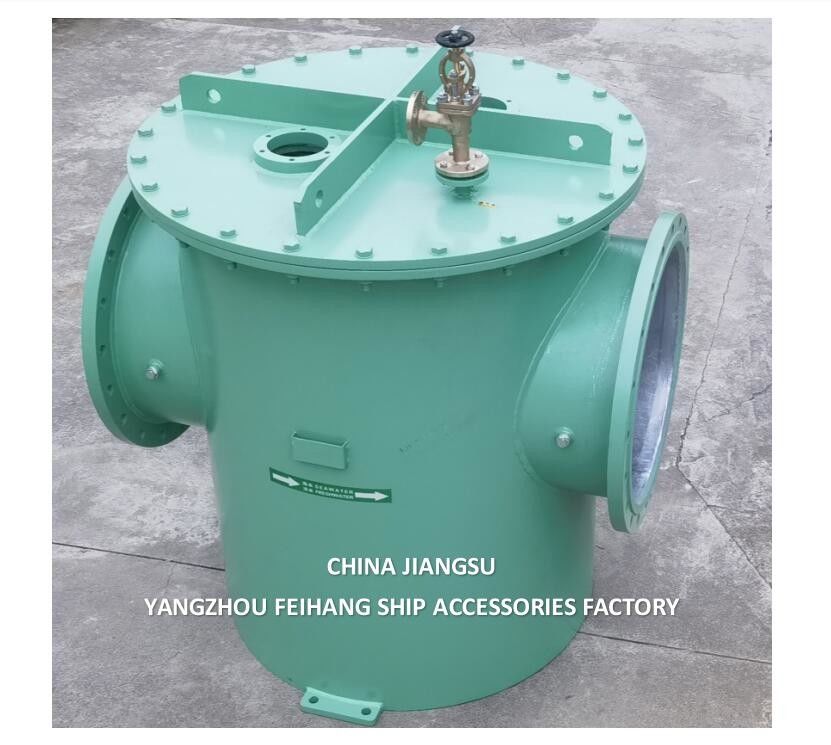

Haidimen Seawater Filter Type AS600 - Straight Through Type, Nominal Diameter DN600, Working Pressure 0.6Mpa

Product Description For Marine Sea Water Strainers & Marine Sea Water Filters:

The MGPS Marine Biological Protection Device Submarine Gate Seawater Filter AS600 is designed to protect our ship from the corrosive effects of seawater. It is specifically designed to meet the requirements of the ship owner and conforms to the ship standard CB/T497-2012. This filter serves as a powerful suction coarse water filter, effectively preventing the entry of marine organisms into the bilge system. It reduces the corrosion rate of seawater on the hull of the ship, ensuring its durability and longevity.

Features For Marine Sea Water Strainers & Marine Sea Water Filters:

The design requirements for seawater filters for marine submarines are outlined below.

The chosen filter model is the AS type, known for its straight-through design. It has a nominal diameter of DN600, making it suitable for use in marine environments.

The working pressure for the seawater filter is 0.6Mpa, with a design pressure of 1.0Mpa. This ensures the filter can withstand the pressure of seawater without leaking or breaking.

The body of the filter is made of carbon steel and is hot-dip galvanized to protect against corrosion in saltwater. The interior of the body is lined with a rubber coating to further prevent corrosion and ensure the longevity of the filter.

The filter cartridge material is SUS316L stainless steel, known for its durability and resistance to corrosion in marine environments. It has a filtering diameter of 5mm, making it suitable for removing larger particles from seawater.

The inlet and outlet connections for the coarse water filter are PN10 flanges, which are commonly used in marine applications. The filter also requires two welding seats to be installed on the cover plate for the installation of anti-marine biological electrodes.

Technical Parameters For Marine Sea Water Strainers & Marine Sea Water Filters:

This marine main seawater filter:

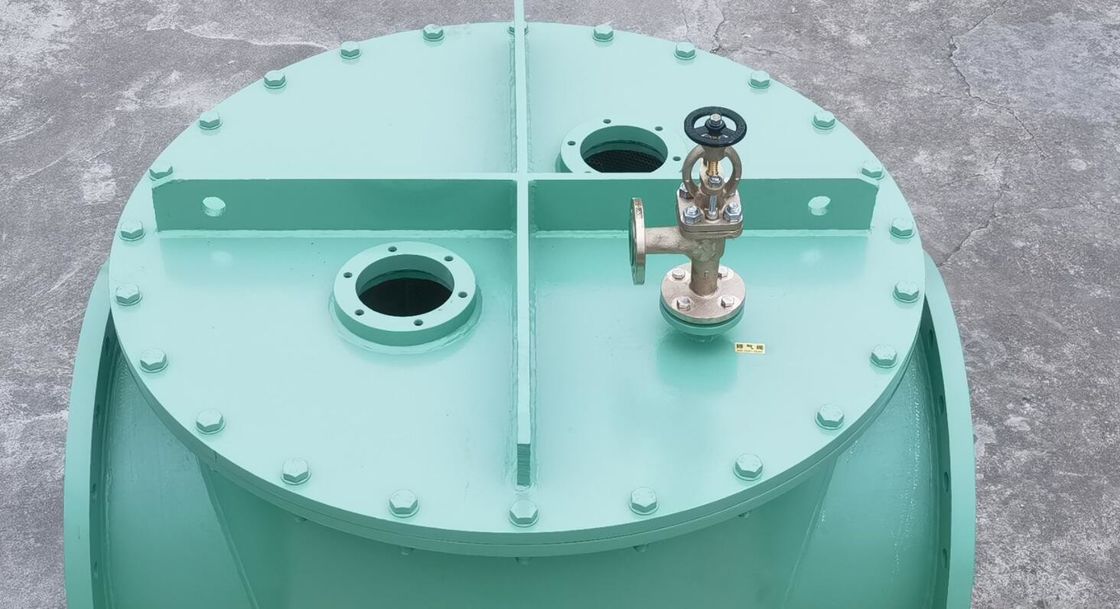

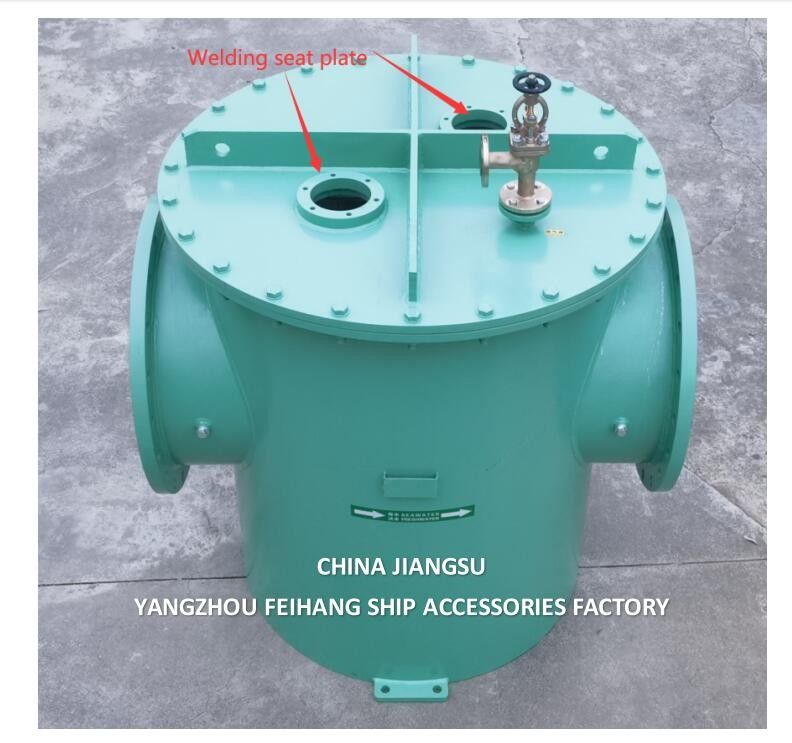

The cover plate is equipped with a welded seat plate for connecting the MGPS marine organism prevention device

Marine stop check valves used at the cover plate serve as exhaust valves

Equipped with a drainage outlet at the bottom

The inlet and outlet connections are equipped with threaded welding, which can connect devices such as pressure gauges

Applications For Marine Sea Water Strainers & Marine Sea Water Filters:

This is a MGPS marine carbon steel galvanized main seawater filter, designed specifically for desulfurization systems and compliant with AS600 CB/T497-2012 standards. It effectively removes marine organisms and prevents them from entering the system.

Featuring a special subsea gate designed for desulfurization towers, this filter is equipped with an imported MGPS anti marine organism device, making it a highly reliable option for marine protection. It meets AS600 CB/T497-2012 standards.

For desulfurization systems with specific subsea gate outlets, the MGPS anti marine organism device seawater filter AS600 CB/T497-2012 is the recommended choice. It effectively filters out marine organisms and ensures clean seawater enters the system.

With a high level subsea gate, this MGPS filter is designed for use in desulfurization towers and features a marine organism prevention device. It is built to AS600 CB/T497-2012 standards and guarantees optimal protection for the system.

For desulfurization systems with a low level subsea gate, this seawater filter is equipped with an MGPS anti marine organism device and meets AS600 CB/T497-2012 standards. It effectively filters out marine organisms and keeps the system safe and clean.

Dedicated to desulfurization tower hosts, this seawater pump features an imported MGPS anti marine organism device and is designed to meet AS600 CB/T497-2012 standards. It is a reliable choice for marine protection in desulfurization systems.

Customization For Marine Sea Water Strainers & Marine Sea Water Filters:

• Brand Name: FEIHANG
• Model Number: AS-TYPE Straight through type
• Place of Origin: Yangzhou, Jiangsu, China
• Certification: Factory certificate, test report, material report
• Minimum Order Quantity: 1pcs
• Price: Discuss personally
• Packaging Details: Export packaging
• Delivery Time: 5-7days
• Payment Terms: 100% prepaid
• Supply Ability: 100pcs/days
• Filter Element: Stainless Steel Mesh
• Median Function: Sea Water
• Body Material: Carbon Steel Hot-dip Galvanizing
• SURFACE TREATMENT: Hot-dip Galvanizing And Paint
• Connection Type: Flanged

Packing and Shipping For Marine Sea Water Strainers & Marine Sea Water Filters:

Our Marine Sea Water Strainer is carefully packaged to ensure safe delivery to our customers. Each unit is placed in a sturdy cardboard box with ample padding to protect it during transit. The box is then sealed with packaging tape to prevent any damage or tampering during shipping.

We offer both domestic and international shipping options for our Marine Sea Water Strainer. For domestic orders, we use trusted carriers such as UPS, FedEx, and USPS. Shipping times may vary depending on the customer's location, but we strive to process and ship orders within 1-2 business days.

For international orders, we work with our shipping partners to ensure timely and safe delivery. Customers can choose from a variety of shipping options, such as air freight or sea freight, depending on their needs and budget.

Upon shipment, customers will receive a tracking number via email or phone, depending on their preferred method of communication. This allows them to track their order and know exactly when to expect delivery.

At Marine Sea Water Strainer, we take great care in packaging and shipping our products to ensure their safe arrival to our customers. We are committed to providing the best quality products and services, and we strive to exceed our customers' expectations with every order.

FAQ For Marine Sea Water Strainers & Marine Sea Water Filters:

• Q: What is the brand name of this product?
  A: The brand name of this product is FEIHANG.
• Q: What is the model number of this product?
  A: The model number of this product is AS-TYPE Straight through type.
• Q: Where is this product manufactured?
  A: This product is manufactured in Yangzhou, Jiangsu, China.
• Q: What certifications does this product have?
  A: This product has Factory certificate, test report, and material report.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 piece.
• Q: How much does this product cost?
  A: The price for this product can be discussed personally.
• Q: How is this product packaged for export?
  A: This product is packaged for export according to international standards.
• Q: How long is the delivery time for this product?
  A: The delivery time for this product is 5-7 days.
• Q: What are the payment terms for this product?
  A: The payment terms for this product is 100% prepaid.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is 100 pieces per day.
