Marine Sea Water Strainers Model AS600 CB/T497For High Level Subsea Gate With Mgps For Desulfurization Tower

Product Description For Marine Sea Water Strainers & Marine Sea Water Filters:

The MGPS Marine Biological Protection Device Submarine Gate Seawater Filter AS600 is designed to protect our ship from the corrosive effects of seawater. It is specifically designed to meet the requirements of the ship owner and conforms to the ship standard CB/T497-2012. This filter serves as a powerful suction coarse water filter, effectively preventing the entry of marine organisms into the bilge system. It reduces the corrosion rate of seawater on the hull of the ship, ensuring its durability and longevity.

Features For Marine Sea Water Strainers & Marine Sea Water Filters:

The design requirements for seawater filters for marine submarines are outlined below.

The chosen filter model is the AS type, known for its straight-through design. It has a nominal diameter of DN600, making it suitable for use in marine environments.

The working pressure for the seawater filter is 0.6Mpa, with a design pressure of 1.0Mpa. This ensures the filter can withstand the pressure of seawater without leaking or breaking.

The body of the filter is made of carbon steel and is hot-dip galvanized to protect against corrosion in saltwater. The interior of the body is lined with a rubber coating to further prevent corrosion and ensure the longevity of the filter.

The filter cartridge material is SUS316L stainless steel, known for its durability and resistance to corrosion in marine environments. It has a filtering diameter of 5mm, making it suitable for removing larger particles from seawater.

The inlet and outlet connections for the coarse water filter are PN10 flanges, which are commonly used in marine applications. The filter also requires two welding seats to be installed on the cover plate for the installation of anti-marine biological electrodes.

Technical Parameters For Marine Sea Water Strainers & Marine Sea Water Filters:

This marine main seawater filter:

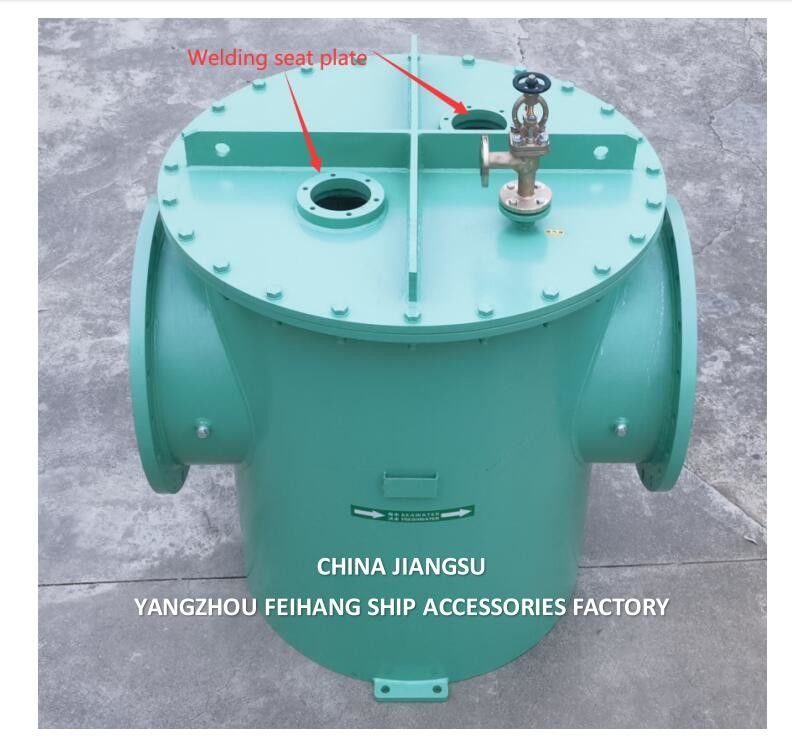

The cover plate is equipped with a welded seat plate for connecting the MGPS marine organism prevention device

Marine stop check valves used at the cover plate serve as exhaust valves

Equipped with a drainage outlet at the bottom

The inlet and outlet connections are equipped with threaded welding, which can connect devices such as pressure gauges

Applications For Marine Sea Water Strainers & Marine Sea Water Filters:

This is a MGPS marine carbon steel galvanized main seawater filter, designed specifically for desulfurization systems and compliant with AS600 CB/T497-2012 standards. It effectively removes marine organisms and prevents them from entering the system.

Featuring a special subsea gate designed for desulfurization towers, this filter is equipped with an imported MGPS anti marine organism device, making it a highly reliable option for marine protection. It meets AS600 CB/T497-2012 standards.

For desulfurization systems with specific subsea gate outlets, the MGPS anti marine organism device seawater filter AS600 CB/T497-2012 is the recommended choice. It effectively filters out marine organisms and ensures clean seawater enters the system.

With a high level subsea gate, this MGPS filter is designed for use in desulfurization towers and features a marine organism prevention device. It is built to AS600 CB/T497-2012 standards and guarantees optimal protection for the system.

For desulfurization systems with a low level subsea gate, this seawater filter is equipped with an MGPS anti marine organism device and meets AS600 CB/T497-2012 standards. It effectively filters out marine organisms and keeps the system safe and clean.

Dedicated to desulfurization tower hosts, this seawater pump features an imported MGPS anti marine organism device and is designed to meet AS600 CB/T497-2012 standards. It is a reliable choice for marine protection in desulfurization systems.

Customization For Marine Sea Water Strainers & Marine Sea Water Filters:

• Brand Name: FEIHANG
• Model Number: AS-TYPE Straight through type
• Place of Origin: Yangzhou, Jiangsu, China
• Certification: Factory certificate, test report, material report
• Minimum Order Quantity: 1pcs
• Price: Discuss personally
• Packaging Details: Export packaging
• Delivery Time: 5-7days
• Payment Terms: 100% prepaid
• Supply Ability: 100pcs/days
• Filter Element: Stainless Steel Mesh
• Median Function: Sea Water
• Body Material: Carbon Steel Hot-dip Galvanizing
• SURFACE TREATMENT: Hot-dip Galvanizing And Paint
• Connection Type: Flanged
