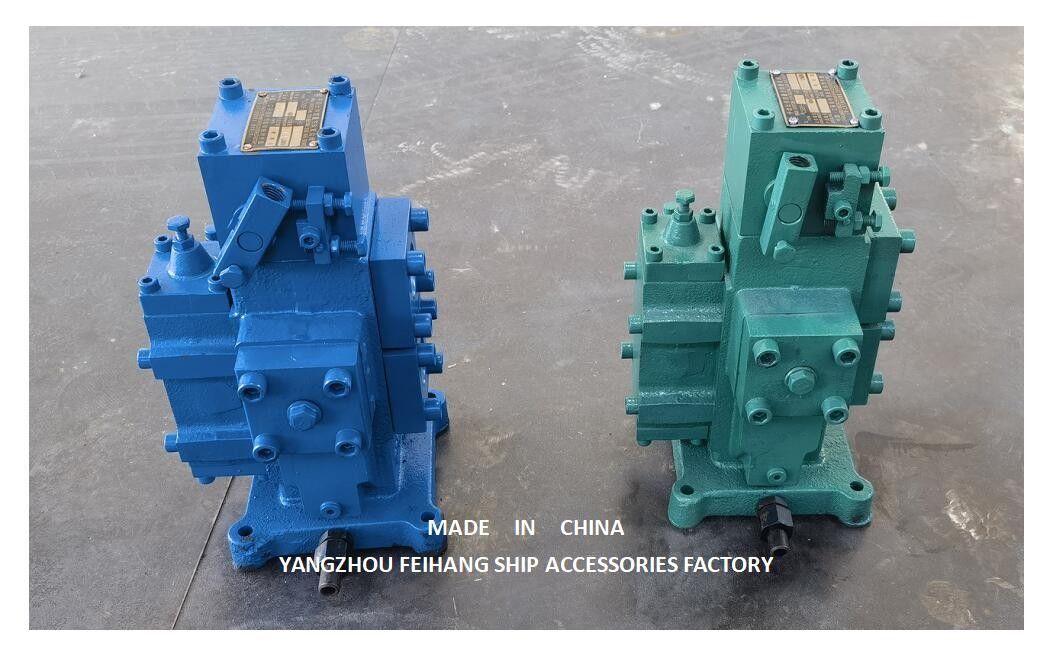

JHH-06-6C-PT-120& JHH-08-6C-PT-200 WINCH CONTROL VALVE
MADE IN CHINA YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY
Product Description For JHH-06-6C-PT-120 WINCH CONTROL VALVE :
The Winch Control Valve is available in two different models: JHH-06-6C and JHH-06-08. Both models are designed to handle a maximum flow rate of between 120-500 liters per minute, ensuring that you can achieve the precise flow control that you need to get the job done right. Additionally, the Winch Control Valve is rated to handle a maximum pressure of 210 liters per minute, making it a powerful and versatile tool for any winch application.
One of the standout features of the Winch Control Valve is its manual proportional flow control capabilities. This allows you to precisely adjust the flow rate of your winch, ensuring that you can achieve the exact level of control that you need to get the job done efficiently and effectively. Whether you are working with heavy loads or need to manage the movement of your winch in a tight space, the Winch Control Valve is an excellent choice for any application where precision control is required.
The Winch Control Valve is also built to meet the highest standards for quality and durability. Made from high-quality materials and designed to withstand even the toughest conditions, this control valve windlass is built to last and deliver reliable performance day after day. Additionally, the Winch Control Valve is designed to meet the CB design standards, ensuring that you can trust in its quality and performance.
Overall, if you are looking for a powerful and reliable control valve windlass that can help you achieve precise flow control for your winch, the Winch Control Valve is an excellent choice. Built to meet the highest standards for quality and performance, this manual proportional flow valve is an essential tool for any winch application where precision control is required. So why wait? Invest in the Winch Control Valve today and experience the difference for yourself!
Features JHH-06-6C-PT-120 WINCH CONTROL VALVE:
Here's an alternative way to express the given text using multiple paragraphs:
The JHH control valve is a highly versatile 4 directional switching valve with 3 distinct positional settings. One of its most notable features is its pressure compensation device, which ensures that the valve works smoothly and efficiently despite any changes in external loads or conditions.
Aside from the pressure compensation mechanism, the valve also incorporates a specialized flow control valve designed for optimal performance at a 45-degree angle to both the left and right. This flow control valve ensures that the oil flow from the P-port to either the A or B-port can be adjusted proportionally based on the operational angle of the lever.
It is worth noting that the pressure compensation device effectively isolates the influence of load changes on the valve's operational speed. This allows the JHH control valve to consistently and accurately control the speed of the actuator, making it an essential component in many industrial applications.
Technical Parameters JHH-06-6C-PT-120 WINCH CONTROL VALVE:
| Product Name |
Winch Control Valve |
| Model |
JHH-06-6C, JHH-06-08 |
| Valve Actuator |
Manual |
| Valve Type |
Manual proportional composite valve |
| Rated Pressure |
210l/min |
| Inlet/Outlet Port Size |
20A-40A |
| Max Flow |
120-500l/min |
| Valve Body Material |
Cast Iron |
| Paint color |
Blue |
| DESIGN STANDARDS |
CB |
| Usage |
Control Valve Windlass |
ORDERING CODE FOR JHH-06-6C-PT-120 WINCH CONTROL VALVE:
|
MODEL
|
VALVE SIZE
|
SPOOL TYPE |
PRESSURE COMPENSATION |
FLOW
(l/min)
|
RATED
PRESSURE
(kgf/c㎡)
|
|
JHH-
|
06 - DN20(3/4”) |
6C
7C
8C
9C
|
PT
PC
|
120 |
210
|
| 08 - DN25(1”) |
200 |
| 10-DN32(1-1/4”) |
300 |
| 12 -DN40(3/4”) |
500 |
OPERATIONAL POWER OF LEVER FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
CONTROL VALVE IS SPOOL VALVE AND THEN THE OPERATIONAL IS A LITTLE BUT THE BRAKE WAS SET FOR THE PREVENTION OFMISOPERATION.THEREFORE, THE LEVER CAN BE KEPT AT RIGHT POSITION THOUGH THE HAND IS KEPT AWAY.
POSITION CHANGE OF LEVER FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
HEAD COVER CAN BE REVOLVED AT RESPECTIVELY 90. PLEASE HANDLE IT AT THE POSITION TO BE MOST SIMPIY OPERATED.AS FOR THE MEANS OF LEVER POSITION CHANGE, REMOVE THE LEVERSTOPPER AND ALSO RELEASE FOUR BOLT OFHEADCOVER PART, AND LET IT REWOLVE .
ADJUSTMENT OF FLOW CONTROL WRENCH FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
THE FLOW OF P.T. PORT BECOME TO AS THE MAXIMUM FLOW AS SHOWN IN THE INDIVIDUAL SPECIFICATION TABLE ANDTHE FLOW FROM A.B. PORT INCREASES IN PROPORTION TO THE LEVER'S ANGLE AND ON THE OCCASION OF TUMING THECONTROL SCREW TO CLOCKWISE WHEN FLOW CONDITION IS MAXIMUMLY WRENCHED, THE FLOW CAN BE INCREASED AND ITIS DECREASED WHEN THE SCREW IS TURNED TO COUNTERCLOCKWISE.
RELIEF VALVE FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
THIS RELIEF VALVE IS PILOT TYPE RELIEF VALVE AND MAIN VALVE CAN BE USED BOTH AS PRESSURE SUBSIDIARY VALVE.ON THE OCCASION OF TURNING THE CONTROL SCREW TO CLOCKWISE, THE PRESSURE IS RISEN AND DESCENDED WHEN THESCREW IS TURNED TO COUNTERCLOCKWISE. AND THE RELIEF PRESSURE BECOMES THE DIFFERENTIAL PRESSURE BETWEEN PT. AND ACCORDINALY ON THE OCCASION OF BEING HIGH BACKPRESSURE OF T PORT, THE RELIEF PRESSURE IS MADE HIGHWITH ITS EXTENT.
DRAIN FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
WHEN T PORT' S PRESSURE BECOMES MORE THEN 70KGF/CM. DRAIN PIPING SHOULD BE FULFILLED AND ON THE OCCASIONOF BEING LESS THAN 70KGF/AM THE INSIDE DRAIN CAN BE USED. LT IS BECOME TO BE AS THE INSIDE DRAIN WITHCLOSING DRAIN PORT.
AIR REMOVAL FOR JHH-08-8C-PT-200 WINCH CONTROL VALVE:
LEVER CAN BE MOVED ACCORDING TO PRESSURE'S CHANGING OF T PORT WHEN INSIDE DRAIN IS USED RELEASE THEPLUG OF HEAD COVER UPPER PART AND PLEASE REMOVE THE AIR.WHEN THE OIL IS NOT FLOWED, IF THE PLUG WAS RELEASED, THE AIR CAN BE PROMPTLY REMOVED, IF THE FRESHFUNCTICNAL OIL IS SUPPLEMENTED. ROTARY ACE VALVE IS UNNECESSARY FOR AIR REMOVAL.
Packing and Shipping JHH-06-6C-PT-120 WINCH CONTROL VALVE:
We are a qualified manufacturer (JHH-06-6C-PT-120 WINCH CONTROL VALVE) in China, and our products have been exported to customers around the world, such as Singapore, Dubai, Hamburg, United Arab Emirates, Netherlands, South Korea, Mexico, Thailand, Indonesia, Vietnam, Philippines, United Kingdom, etc..
If you have any needs, please feel free to contact us at any time!
Product Packaging:
- 1 Winch Control Valve
- Mounting hardware
- User manual
Shipping:
- Shipping method: UPS Ground
- Estimated delivery time: 3-7 business days
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is FEIHANG.
Q: What are the model numbers available for this product?
A: The available model numbers for this product are JHH-06-6C-PT-120 and JHH-08-6C-PT-200.
Q: What is the place of origin of this product?
A: The place of origin of this product is Yangzhou, Jiangsu, China.
Q: What certifications are available for this product?
A: This product comes with a factory certificate, test report, and material report.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 piece.
Q: What is the price of this product?
A: The price of this product can be discussed personally.
Q: What are the packaging details for this product?
A: This product comes with export packaging.
Q: What is the delivery time for this product?
A: The delivery time for this product is 1-2 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are 100% prepaid.
Q: What is the supply ability for this product?
A: The supply ability for this product is 100 pieces per day.
